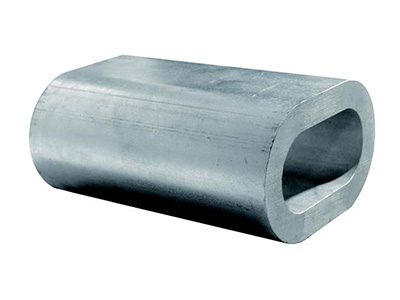

索具鋁管
Sling Aluminum tipe
產品特點
- 與鋼絲繩等強度，吊裝作業安全，負荷大，可承受沖擊載荷，使用壽命長。
- 采用進口鋁合金無縫套管壓接索具工藝，起質量穩定，生產效率高，可靠性強，適合大批量生產。
- 用途廣泛，通用性強，便于使吊索具標準化、系列化。
- 節約鋼絲繩，減少繩夾、錐形套筒、楔形套等零部件，提高設備起吊能力。
- 適合于產品標準化，尤其是可以向國標標準靠攏，使我國的工索具制造業由手工作坊式生產轉變成為專業化生產，使我國的索具生產技術上升到一個新水平。

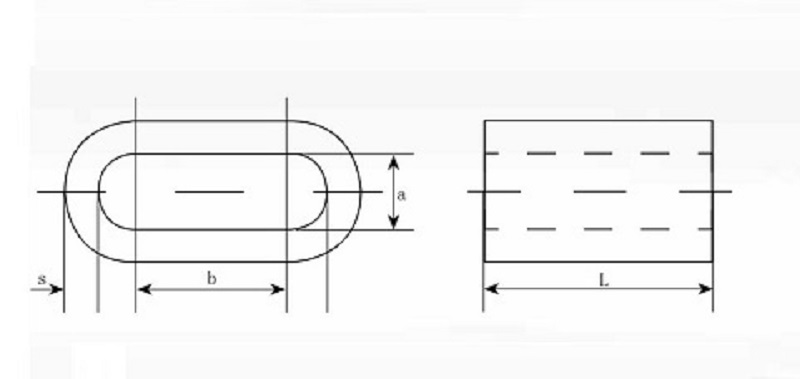

技術參數
|
接頭號 No. joints |
a |
偏 差Deviation |
b |
偏 差Deviation |
s |
偏 差Deviation |
L ≈ |
重量kg Weight |
|
6 |
6.6 |
+0.15 |
13.2 |
+0.15 |
2.5 |
+0.20 |
25 |
0.007 |
|
7 |
7.8 |
+0.15 |
15.6 |
+0.15 |
2.9 |
+0.20 |
30 |
0.012 |
|
8 |
8.8 |
+0.20 |
17.6 |
+0.20 |
3.3 |
+0.20 |
34 |
0.017 |
|
9 |
9.9 |
+0.20 |
19.8 |
+0.20 |
3.7 |
+0.20 |
38 |
0.024 |
|
10 |
10.9 |
+0.20 |
21.8 |
+0.20 |
4.1 |
+0.20 |
42 |
0.032 |
|
11 |
12.1 |
+0.30 |
24.2 |
+0.30 |
4.5 |
+0.30 |
47 |
0.044 |
|
12 |
13.2 |
+0.30 |
26.4 |
+0.30 |
4.9 |
+0.30 |
50 |
0.055 |
|
13 |
14.2 |
+0.30 |
28.4 |
+0.30 |
5.4 |
+0.30 |
55 |
0.072 |
|
14 |
15.3 |
+0.30 |
30.6 |
+0.30 |
5.8 |
+0.30 |
59 |
0.089 |
|
16 |
17.5 |
+0.30 |
35.0 |
+0.30 |
6.7 |
+0.30 |
67 |
0.135 |
|
18 |
19.6 |
+0.30 |
39.2 |
+0.30 |
7.6 |
+0.30 |
76 |
0.194 |
|
20 |
21.7 |
+0.30 |
43.4 |
+0.30 |
8.4 |
+0.30 |
84 |
0.263 |
|
22 |
24.3 |
+0.40 |
48.6 |
+0.40 |
9.2 |
+0.50 |
92 |
0.352 |
|
24 |
26.4 |
+0.40 |
52.8 |
+0.40 |
10.0 |
+0.50 |
101 |
0.456 |
|
26 |
28.5 |
+0.40 |
57.0 |
+0.40 |
10.9 |
+0.50 |
109 |
0.580 |
|
28 |
31.0 |
+0.40 |
62.0 |
+0.40 |
11.7 |
+0.50 |
118 |
0.731 |
|
30 |
33.1 |
+0.40 |
66.2 |
+0.40 |
12.5 |
+0.50 |
126 |
0.890 |
|
32 |
35.2 |
+0.40 |
70.4 |
+0.40 |
13.4 |
+0.70 |
134 |
1.081 |
|
34 |
37.8 |
+0.40 |
75.6 |
+0.40 |
14.2 |
+0.70 |
143 |
1.310 |
|
36 |
39.8 |
+0.40 |
79.6 |
+0.40 |
15.0 |
+0.70 |
152 |
1.549 |
|
38 |
41.9 |
+0.40 |
83.8 |
+0.40 |
15.8 |
+0.70 |
160 |
1.809 |
|
40 |
44.0 |
+0.40 |
88.0 |
+0.40 |
16.6 |
+0.70 |
168 |
2.095 |
|
44 |
48.6 |
+0.50 |
97.2 |
+0.50 |
18.2 |
+0.90 |
184 |
2.775 |
|
48 |
52.2 |
+0.50 |
104.4 |
+0.50 |
19.8 |
+0.90 |
200 |
3.534 |
|
52 |
57.3 |
+0.50 |
114.6 |
+0.50 |
21.4 |
+0.90 |
216 |
4.503 |
|
56 |
61.5 |
+0.50 |
123.0 |
+0.50 |
23.0 |
+0.90 |
232 |
5.595 |
|
60 |
66.0 |
+0.50 |
132.0 |
+0.50 |
24.6 |
+0.90 |
248 |
6.860 |
